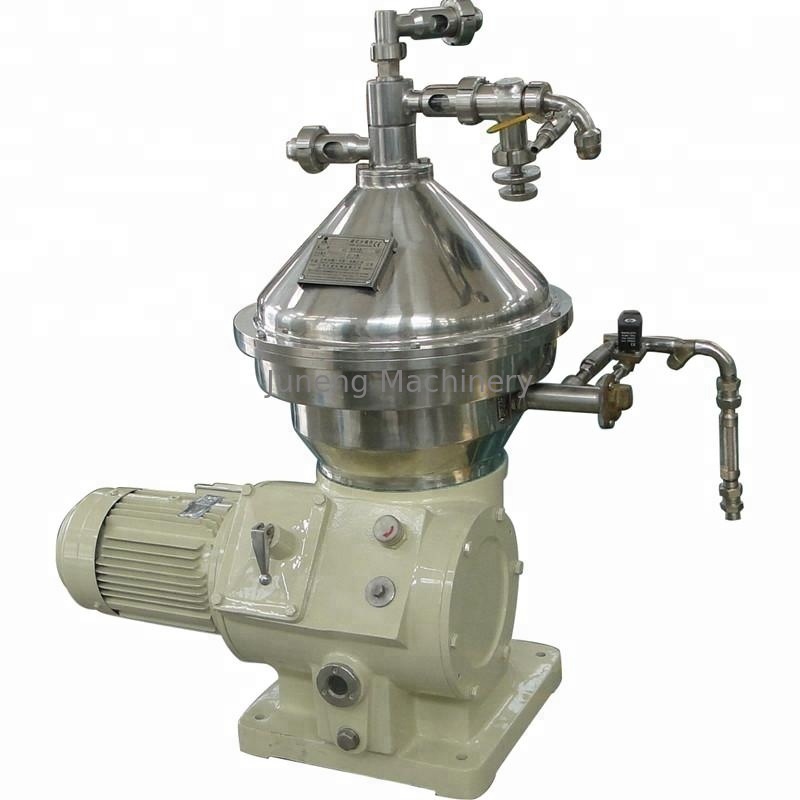

Industrial Milk Cream Separator 500-1500L/H SUS304 Self-Cleaning
| محل منبع | جیانگسو ، چین |
|---|---|
| نام تجاری | Juneng |
| گواهی | CE Certificate |
| مقدار حداقل تعداد سفارش | 1 |
| قیمت | $22,388-29,850 |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| ولتاژ | 220V/380V | قدرت | 4000W |
|---|---|---|---|
| وزن | 520 کیلوگرم | ابعاد | 810*850*1350mm |
| مادی | SUS304/SUS316 | ظرفیت | 500-1500L در ساعت |
| عمل | جداسازی مایع-مایع-جامد | پردازش | چرب |
| مدل | DHNZ204 | ساختار | لبه پوشیده از SS304 |
| تخلیه | خودکار | اجزای اصلی | PLC، موتور، بلبرینگ، گیربکس، موتور، دنده |
| سرعت چرخش | عالی | سطح سر و صدا | پایین |
| سیستم مهر و موم | ورودی/خروجی کاملاً مهر و موم شده | ||
| برجسته کردن | Industrial milk cream separator machine,Self-cleaning milk separator 500-1500L/H,SUS304 milk cream separator with warranty,Self-cleaning milk separator 500-1500L/H,SUS304 milk cream separator with warranty |
||
توضیحات محصول
Milk Cream Self-cleaning Separator Machine
Product Application
Juneng dairy separator features large capacity, excellent deoiling performance, high efficiency and low energy consumption. The advanced inlet and outlet design ensures gentle treatment during the entire separation process, preventing destructive air entry and maintaining product quality.
Milk products vary widely in composition, from simple milk with different fat contents to diverse dairy products including butter, cheese, quark, and yogurt.
Main Features
- High rotating speed
- Operating stability
- Completely sealed inlet and outlet system
- Low noise operation
- Exceptional separation efficiency
Technical Specifications
| Model | DHNZ204 |
|---|---|
| Material | SS304 |
| Structure | Edge covered with SS304 |
| Function | Liquid-liquid-solid separation |
| Application | Milk skimming |
| Capacity | 500-1500 liters per hour |
| Discharge | Automatic |
Related Products
Three Phase Disc Separator
100% Response Rate
Machine Parts
Name: Main Parts of Drum
Brand: Juneng
Origin: China
From left to right are discs, drum cover, disc gland, and slide piston.
Name: Shaft
Brand: Juneng
Origin: China
The vertical shaft transmits power and is equipped with speed step-up gear (small spiral gear) and high-speed rotating components. The cross shaft transfers motor power to the vertical shaft and main drum parts.
Name: Assembled Drum
Brand: Juneng
Origin: China
The drum is the high-speed rotating component that performs material separation, serving as the heart of the separator.
Name: Equipment Base
Brand: Juneng
Origin: China
The underframe supports the entire separator and connects to the base. All four supporting feet feature damping rubber pads that effectively isolate vibration between the separator and building structure.
Certifications
Our company has achieved numerous honors and obtained various certifications including:
- ASME U (Certificate No.: 38793)
- ISO 9001:2015 (Certificate No.: CN1299-QC)
- ISO 14001:2015 (Certificate No.: CN1299-EC)
- ISO 45001:2018 (Certificate No.: CN1299-SC)
- BV and CE certifications
Our Service
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory viewing opportunities
After-Sales Service
- Machine installation training
- Machine operation training
- Overseas engineer support
Packing & Delivery
| Packaging | |
|---|---|
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
Packaging Details: Standard packaging uses wooden boxes (Size: L*W*H). For European exports, wooden boxes are fumigated. For tight container fits, we use PE film or accommodate special customer requests.
