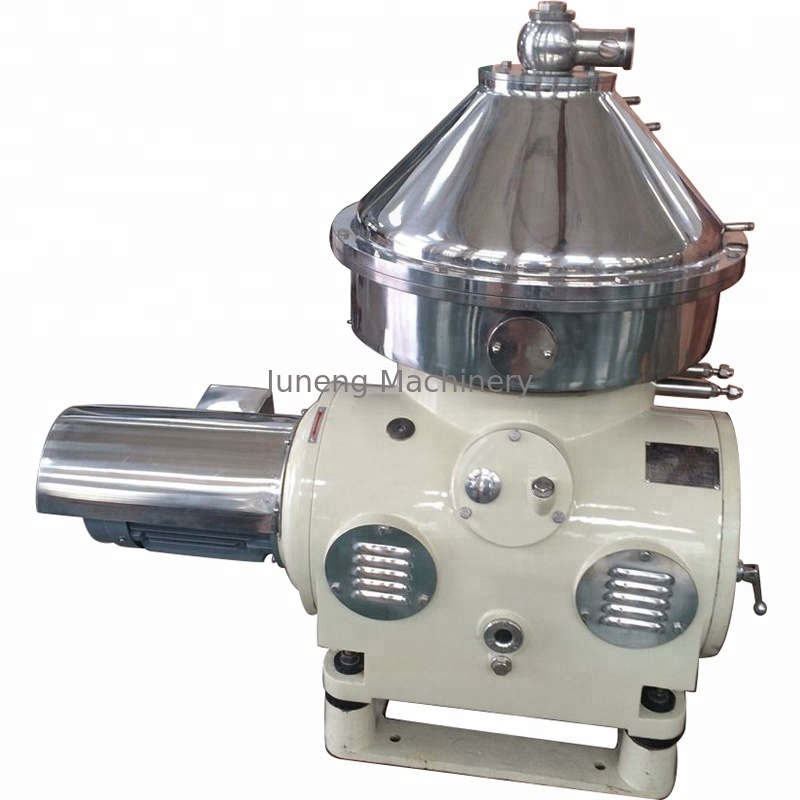

Stainless Steel 304 Milk Cream Separator 1000-1500 LPH Capacity
| محل منبع | جیانگسو ، چین |
|---|---|
| نام تجاری | Juneng |
| مقدار حداقل تعداد سفارش | 1 |
| قیمت | $25,679 |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| ولتاژ | 380 | قدرت | 15 وات |
|---|---|---|---|
| وزن | ۱۸۸۰ کیلو | اجزای اصلی | PLC ، یاتاقان ، موتور |
| مادی | فولاد ضد زنگ 304 | نوع گریز از مرکز | جداسازی با سرعت بالا |
| ظرفیت | 1000-1500 لیتر | نوع تخلیه | کنترل PLC تخلیه خودکار |
| حامل | بلبرینگ SKF | سرعت | 5000-12000 دور در دقیقه |
| فشار | 0.05 مگاپاسکال | فشار | 0.1-0.35 MPa |
| بعد | 1530*1150*1500 میلی متر | عامل جدایی | عالی |
| عمل | جداکننده سه فاز | ||
| برجسته کردن | Stainless Steel 304 milk cream separator,1000-1500 LPH milk separator,high capacity cream separator machine,1000-1500 LPH milk separator,high capacity cream separator machine |
||
توضیحات محصول
Factory Use Dairy Centrifugal Milk Cream Separator
Juneng's automatic milk cream production disc type centrifuge separator is designed for high-efficiency dairy processing. With special design for centripetal pump and inlet/outlet ports, it creates a soft separation environment that preserves nutritional value, freshness, and original flavor of dairy products.
Separator Application
As consumer demand for quality dairy products increases, advanced equipment becomes essential in production processes. Our centrifugal separator is ideal for:
- Milk processing industry applications
- Continuous separation of cream and defatted milk from pure milk
- Removal of impurities and sediments
- Milk standardization by fat content
- Separation of tiny solid particles (less than 1mm) from liquid phases
Separator Models
DHN Model (Dairy Clarification)
| Model | Capacity (L/H) | Inlet Pressure | Outlet Pressure | Weight | Dimension (mm) |
|---|---|---|---|---|---|
| DHN360 | 2000-5000 | 0.05 Mpa | 0.1-0.35 Mpa | 1200 kg | 1530×1150×1500 |
| DHN470 | 5000-10000 | 0.05 Mpa | 0.1-0.4 Mpa | 1600 kg | 1800×1200×1750 |
| DHN550 | 10000-20000 | 0.05 Mpa | 0.1-0.4 Mpa | 2300 kg | 1950×1550×1960 |
| DHN616 | 25000-35000 | 0.1 Mpa | 0.3 Mpa | 3000 kg | 2185×1728×2082 |
DHNZ Model (Dairy Skimming)
| Model | Capacity (L/H) | Inlet Pressure | Outlet Pressure | Weight | Dimension |
|---|---|---|---|---|---|
| DHNZ204 | 500-1000 | 0.05 Mpa | 0.1-0.2 Mpa | 520 kg | 810×850×1350 |
| DHNZ360 | 1000-3000 | 0.05 Mpa | 0.1-0.2 Mpa | 1200 kg | 1530×1150×1500 |
| DHNZ470 | 3000-7000 | 0.05 Mpa | 0.1-0.2 Mpa | 1600 kg | 1800×1200×2030 |
| DHNZ550 | 5000-10000 | 0.05 Mpa | 0.1-0.2 Mpa | 2300 kg | 1950×1550×1960 |
Working Principles
Dairy Skimming
The disc separator performs two-phase and three-phase separation:
- Two-phase separation: Separates suspended solids from liquid or two immiscible liquids with different specific gravity
- Three-phase separation: Simultaneously separates two immiscible liquid phases and a solid phase
Dairy Clarification
Materials feed into the machine's bowl where strong centrifugal force removes impurities from raw material, producing clean milk.
Key Advantages
- Continuous feeding operation
- High separation factor for efficient processing
- Automatic residue discharging system
- CIP (Clean-in-Place) capability
- Hydraulic coupling driving for longer service life
- PLC system automatic control
- Excellent milk skimming performance
- High operational efficiency
- Lower energy consumption
- Soft feeding/discharging through optimized inlet/outlet design
Applications
- Hot and cold milk separation
- Whey protein separation
- Buttermilk separation
- Dairy whey clarification
- Disinfection of dairy products
- Casein processing
- Syrup clarification
- Vegetable juice clarification
- Tea drinks, coffee, beer and other liquid clarification
Detailed Components
All parts contacting materials are made of stainless steel to minimize corrosion and meet food hygiene requirements. The separator bowl undergoes precise dynamic balancing for stable operation with low vibration and noise.
Technical Specifications
Material:
Super stainless steel
Function:
High-speed operation
Assembly:
Precision assembly
Speed:
5000-12000 RPM
PLC Control System
The separator features an automatic control cabinet with industrial computer and auto overload protector. This highly automated system adapts to process changes, is easy to adjust, and reduces operator workload.
Quality Assurance
Our first-class laboratory performs chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetic inspection, and ultrasonic inspection to ensure every product component is stable and reliable.
Packaging & Delivery
| Packaging | Details |
|---|---|
| Size | 1800(L)×1800(W)×1800(H) (varies by model) |
| Weight | 1000kg-3000kg |
| Packaging Details | Standard wooden box packaging. For European exports, wooden boxes are fumigated. Alternative packaging available for tight containers or special requests. |
Our Company
Juneng focuses on international technical collaboration and commercial exchange, learning from experts in the USA, Canada, Germany, Russia, and Southeast Asia to become a global industry leader.
Our Services
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory viewing arrangements
After-Sales Service
- Machine installation training
- Machine operation training
- Overseas engineer support
Certifications
Frequently Asked Questions
Q: How can we visit your factory?
A: International visitors can fly to Shanghai airport where we provide pickup service. Domestic visitors can travel directly to Wuxi station for pickup.
Q: How do you ensure product quality?
A: As a state-owned enterprise with 30+ years experience, we implement strict quality control with advanced machinery, licensed operators, international brand components, and comprehensive testing throughout production.
Q: What payment methods do you accept?
A: We primarily accept T/T and L/C at sight, along with most standard payment methods.
Q: What is your warranty policy?
A: We offer a 12-month warranty after commissioning.
Q: How can I trust your company?
A: We've been a verified Alibaba Golden Supplier for 10+ years with CE, ISO9001, and Alibaba onsite check certifications. Our Trade Assurance Limit is US$42,000+.
Q: What are your delivery terms?
A: Standard delivery is 20 days (30 days for customized machines), depending on order quantity.
Q: Do you offer discounts?
A: We strive to provide competitive pricing along with excellent service.
