کرم شیر جداکننده ماشین
Created with Pixso. Industrial Milk Fat Separator 5000 L/H 380V PLC Control

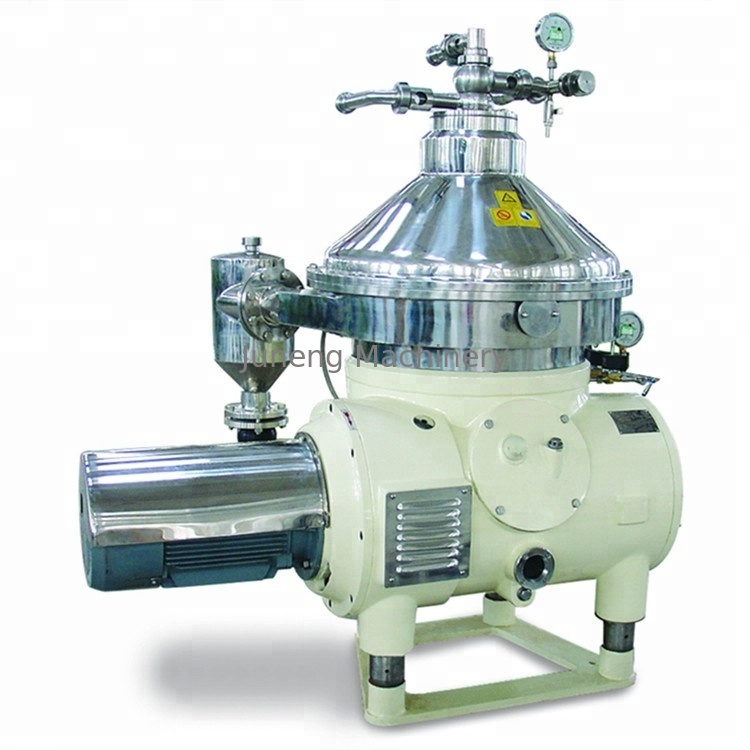

Industrial Milk Fat Separator 5000 L/H 380V PLC Control

Brand Name: Juneng
MOQ: 1
قیمت: $27,880-30,000
Detail Information
محل منبع:
جیانگسو ، چین
ولتاژ:
380V/50HZ یا سفارشی
قدرت:
15000W
بعد:
1800*1200*1800 میلی متر
ظرفیت:
3000-7000 لیتر در ساعت ، تأیید. 5000 لیتر در ساعت
وزن:
1600 کیلوگرم
تنظیم سرعت:
600 دور در دقیقه
مادی:
316 فولاد ضد زنگ برای قسمت مرطوب
نوع تخلیه:
به طور مداوم
نظافت:
خود تمیز شوندگی خودکار
اجزای اصلی:
PLC، موتور، پمپ
عمل:
کنترل شده توسط plc cabniet
فشار:
0.05 مگاپاسکال
فشار:
0.1-0.35 MPa
سرعت چرخش:
5000-12000 دور در دقیقه
عامل جدایی:
عالی
برجسته کردن:

Industrial milk fat separator machine,5000 L/H milk cream separator,380V PLC control separator machine

,

5000 L/H milk cream separator

,

380V PLC control separator machine

Product Description
Milk Factory Use Disc Stack Milk Fat Separator
Separator Application

This milk cream separator is primarily used in the milk processing industry to continuously separate cream and defatted milk from pure milk while removing impurities and sediments. It can also standardize milk according to fat content.

Junen Separator can separate extremely small solid particles (less than 1mm) dispersed in suspensions from the liquid phase.

Separator Model Specifications
DHN Model (Dairy Clarification)
Model Capacity (L/H) Inlet Pressure Outlet Pressure Weight Dimension (mm)
DHN360 2000-5000 0.05 Mpa 0.1-0.35 Mpa 1200 kg 1530×1150×1500
DHN470 5000-10000 0.05 Mpa 0.1-0.4 Mpa 1600 kg 1800×1200×1750
DHN550 10000-20000 0.05 Mpa 0.1-0.4 Mpa 2300 kg 1950×1550×1960
DHN616 25000-35000 0.1 Mpa 0.3 Mpa 3000 kg 2185×1728×2082
DHNZ Model (Dairy Skimming)
Model Capacity (L/H) Inlet Pressure Outlet Pressure Weight Dimension
DHNZ204 500-1000 0.05 Mpa 0.1-0.2 Mpa 520 kg 810×850×1350
DHNZ360 1000-3000 0.05 Mpa 0.1-0.2 Mpa 1200 kg 1530×1150×1500
DHNZ470 3000-7000 0.05 Mpa 0.1-0.2 Mpa 1600 kg 1800×1200×2030
DHNZ550 5000-10000 0.05 Mpa 0.1-0.2 Mpa 2300 kg 1950×1550×1960
Working Principle for Dairy Skimming

The disc separator is specially designed for two-phase and three-phase separation. Two-phase separation separates suspended solids from liquid or two immiscible liquids with different specific gravity. Three-phase separation simultaneously separates two immiscible liquid phases and a solid phase.

Industrial Milk Fat Separator 5000 L/H 380V PLC Control 0
Working Principle for Dairy Clarification

Clarification involves two-phase separation. Materials are fed into the bowl of the machine where strong centrifugal force removes impurities from raw materials to produce clean milk.

Industrial Milk Fat Separator 5000 L/H 380V PLC Control 1
Separator Advantages
  • Continuous feeding
  • High separation factor
  • Automatic residue discharging
  • CIP (Clean-in-Place) capability
  • Hydraulic coupling driving with longer service life
  • PLC system automatic control
  • Excellent milk skimming performance
  • High efficiency operation
  • Lower energy consumption
  • Soft feeding/discharging of inlet and outlet
Separator Applications
  • Hot milk separation
  • Cold milk separation
  • Whey protein separation
  • Buttermilk separation
  • Dairy whey clarification
  • Disinfection of dairy products
  • Casein processing
  • Syrup clarification
  • Vegetable juice clarification
  • Tea drinks, coffee, beer and other liquid clarification
Industrial Milk Fat Separator 5000 L/H 380V PLC Control 2 Industrial Milk Fat Separator 5000 L/H 380V PLC Control 3
Related Products
Detailed Product Features
Industrial Milk Fat Separator 5000 L/H 380V PLC Control 7

All parts and components contacting materials are made of stainless steel, minimizing corrosion from materials being separated and meeting food hygiene requirements.

The separator bowl undergoes precise dynamic balancing for stable operation with low vibration and noise.

Industrial Milk Fat Separator 5000 L/H 380V PLC Control 8 Industrial Milk Fat Separator 5000 L/H 380V PLC Control 9
Material Super stainless steel
Function Running in High speed
Assembly Precision assembly
Speed 5000-12000 RPM
PLC Control System

The separator features an automatic control cabinet with industrial computer and auto overload protector for high automation, process adaptability, and reduced operator workload.

Industrial Milk Fat Separator 5000 L/H 380V PLC Control 10
Quality Assurance

Our company maintains a first-class laboratory for chemical composition analysis, metallographic analysis, spectrum analysis, performance testing, radiographic inspection, magnetic inspection, ultrasonic inspection and more. We use advanced instrumentation and rigorous procedures to ensure every product component is stable and reliable.

Packaging & Delivery
Industrial Milk Fat Separator 5000 L/H 380V PLC Control 11
Packaging Size 1950(L)×1800(W)×1950(H) (varies by model)
Weight 1000kg-3000kg
Packaging Details Standard wooden box packaging. For European exports, wooden boxes are fumigated. Alternative packaging options available for special requirements.
Company Overview
Industrial Milk Fat Separator 5000 L/H 380V PLC Control 12 Industrial Milk Fat Separator 5000 L/H 380V PLC Control 13

Juneng focuses on international technical collaboration and commercial exchange, learning from experts in the USA, Canada, Germany, Russia, and Southeast Asia to become a global industry leader.

Our Services
Industrial Milk Fat Separator 5000 L/H 380V PLC Control 14 Industrial Milk Fat Separator 5000 L/H 380V PLC Control 15
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory visit arrangements
After-Sales Service
  • Installation and operation training
  • Overseas engineer support
Certifications
Industrial Milk Fat Separator 5000 L/H 380V PLC Control 16
Frequently Asked Questions
Industrial Milk Fat Separator 5000 L/H 380V PLC Control 17
Q: How can we visit your factory?

A: International visitors can fly to Shanghai airport for pickup. Domestic visitors can travel directly to Wuxi station for pickup.

Q: How do you ensure product quality?

A: As a state-owned enterprise with 30+ years experience, we implement strict quality control with advanced machinery, licensed operators, international brand components, and comprehensive testing throughout production.

Q: What payment methods do you accept?

A: We primarily accept T/T and L/C at sight, along with most standard payment methods.

Q: What is your warranty policy?

A: We offer a 12-month warranty after commissioning.

Q: How can I trust your company?

A: We've been a verified Alibaba supplier for 10+ years with Golden Supplier status, holding CE, ISO9001, and Alibaba onsite check certifications. Our Trade Assurance Limit is $42,000+.

Q: What are your delivery terms?

A: Standard delivery is 20 days (30 days for customized machines), depending on order quantity.

Q: Do you offer discounts?

A: We strive to offer competitive pricing with excellent service.
