Stainless Steel 304/316L Filter Plate 1.88mm for Vertical Pressure Filter
| محل منبع | جیانگسو ، چین |
|---|---|
| نام تجاری | Juneng |
| مقدار حداقل تعداد سفارش | 1 |
| قیمت | $4,200-4,289 |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| وزن | 200 کیلوگرم | مادی | فولاد ضد زنگ |
|---|---|---|---|
| شکل سوراخ | الماس | امتیاز فیلتر | > 90 ٪ |
| ضخامت | 1.88 میلی متر | دقت فیلتر | 220 مش |
| منطقه تصفیه | 20 متر مربع | مواد سازه | فولاد ضد زنگ 304 |
| ماده مش | فولاد ضد زنگ 316L | پشتیبانی از مش | 4 * 4 |
| رسانه های فیلتراسیون | 24 * 110 | مش مشبک زهکشی | 8 * 8 |
| الگوهای بافندگی | بافت ساده، بافت جناغی، بافت هلندی | مواد سیمی | 304، 316، 304L، 316L |
| نوع | مش فلزی سوراخ دار | ||
| برجسته کردن | Stainless Steel 304 filter plate,316L vertical pressure filter plate,1.88mm filter plate for pressure filters,316L vertical pressure filter plate,1.88mm filter plate for pressure filters |
||
توضیحات محصول
Stainless Steel Filter Screen Plate for Vertical Pressure Filter
Product Specifications
| Attribute | Value |
|---|---|
| Weight (kg) | 200 |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Core Components | Filter mesh |
| Usage | Liquid Filter |
| Type | Perforated Metal Mesh |
| Material | Stainless steel |
| Hole Shape | Diamond |
| Filter Rating | More than 90% |
| Thickness | 1.88 mm |
| Length | According to filter model |
| Width | According to filter model |
| Function | Filter plate for Oil Filter |
| Structure | Drainage mesh and vibrator fork |
| Filter Precision | 220 mesh |
| Filtration Area | 20m² |
| Material of Structure | Stainless steel 304 |
| Material of Filter Surface Mesh | Stainless steel 316L |

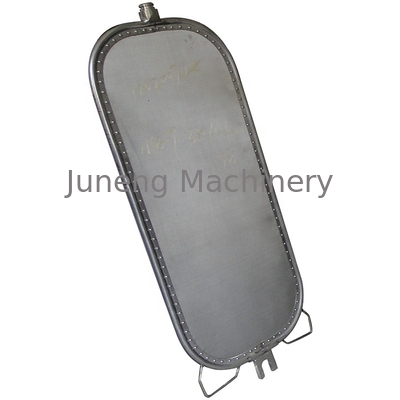

Pressure Filter Mesh Plate
The filtration plate is constructed from multiple layers of stainless steel filtration materials, offering excellent resistance against acid, alkali, heat, and corrosion. These plates are widely used in:
- Oil processing
- Chemical applications
- Food and pharmaceutical industries
- Sorting and screening of solid, liquid, and gas in mining, metallurgy, aerospace, and machine manufacturing
All meshes can be custom-cut to requested sizes.
Available Materials
304, 316, 304L, 316L stainless steel and special alloys
Weaving Patterns
Plain weave, twill weave, dutch weave

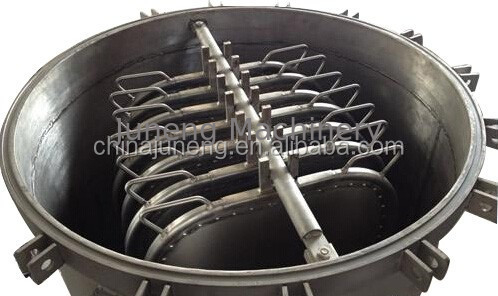

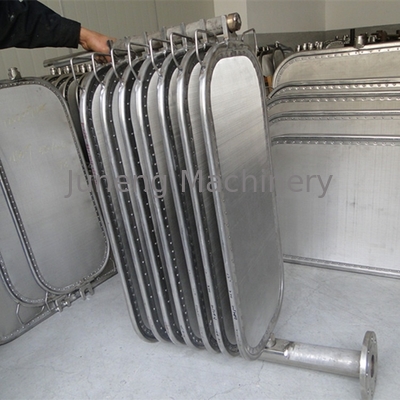

Filter Leafs - The Heart of the Filter
Quality filtration performance begins with premium filter leafs. The leaf closure can be welded, bolted, or riveted according to requirements.
Our filter leafs feature a bolted type design that allows for easy remeshing on-site. We provide remeshing services for each filter plate when suitable.
Filter Plate Configurations
3 Layer Filter Plates:
- Support: 1 layer mesh 4 × 4
- Filtration: 2 layers media 24 × 110
5 Layer Filter Plates:
- Support: 1 layer mesh 4 × 4
- Drainage: 2 layer mesh 8 × 8
- Filtration: 2 layers media 24 × 110
Certifications
About Juneng Group
Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer specializing in the research, development, production, sale, and service of filters, separators, decanter centrifuges, and pumps. With four factories located in Nanjing and Yixing City, we maintain convenient transportation access.
Committed to strict quality control and exceptional customer service, our experienced team is always available to discuss your requirements and ensure complete satisfaction. We hold CE certificates, ASME U certificate, and ISO 9001 certification.
Our products are distributed throughout China and exported to countries including USA, Germany, Korea, Japan, Pakistan, Malaysia, Singapore, and Vietnam. We welcome OEM and ODM orders.
Quality Assurance
- Factory visit/audit required prior to purchase
- Material inspection during manufacturing and prior to shipment
- Strict compliance with technical requirements
Our Development Philosophy
- Continuous innovation and self-improvement
- 5% of sales revenue allocated to research
- 8% of workforce dedicated to development
- Numerous patents and high-quality new products
