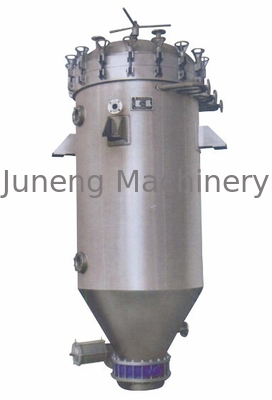

NYB Vertical Pressure Leaf Filter 12m2 Stainless Steel for Oil Industry
| محل منبع | جیانگسو ، چین |
|---|---|
| نام تجاری | Juneng |
| مقدار حداقل تعداد سفارش | 1 |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| حداکثر | 500 لیتر در ساعت | اندازه ذرات | 2 |
|---|---|---|---|
| میزان جریان | 2GPM (7.6lpm) | حداکثر فشار | 120psi |
| منطقه تصفیه | 12m2 | مادی | فولاد کربن ، فولاد ضد زنگ |
| دمای طراحی | 100-150 | فشار طراحی | 0.6 مگاپیکال |
| اندازه ورودی | DN50 | اندازه پورت سرریز | DN40 |
| حجم کیک فیلتر | 240 لیتر | ظرفیت درمانی | 2-4t/h |
| فشار | 0.5MPa | دمای کار | ≤150 ℃ |
| حجم دستگاه | 1000L | ||
| برجسته کردن | stainless steel vertical pressure leaf filter,oil industry pressure leaf filter,12m2 vertical leaf filter,oil industry pressure leaf filter,12m2 vertical leaf filter |
||
توضیحات محصول
NYB Vertical Pressure Stainless Steel Plate Filter for Oil Industry
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Max. Capacity | 500L/H |
| Warranty | 1 Year |
| Particle Size | 2 |
| Flow Rate | 2gpm (7.6lpm) |
| Maximum pressure | 120psi |
| After-sales Service | Field maintenance and repair service |
| Function | Oil Filter |
| Structure | Leaf Filter |
| Capacity | 2-4T/H |
| Filtration area | 12m² |
| Material | Carbon steel, Stainless steel |
| Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa |
| Inlet size | DN50 |
| Overflow port size | DN40 |
Product Description
NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

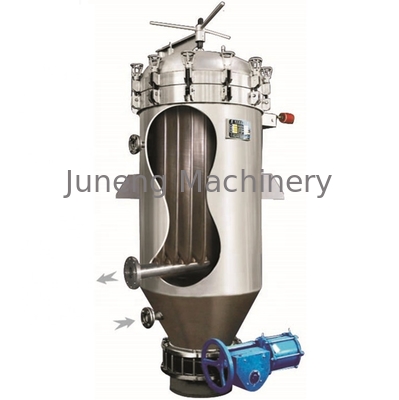

The filter is composed of shell, filtration plate, cover, and automatic dump device. Among them, the filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.
Technical Specifications
| Model | Filtration area (㎡) | Filter cake volume (L) | Treatment Capacity | Work Pressure (Mpa) | Work temperature (℃) | Machine volume (L) |
|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 0.1-0.4 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 0.5 | ≤150 | 250 |
| NYB-7 | 7 | 105 | 1-1.8 | 0.1-0.4 | ≤150 | 420 |
| NYB-10 | 10 | 150 | 1.6-3 | 0.1-0.4 | ≤150 | 800 |
| NYB-12 | 12 | 240 | 2-4 | 0.1-0.4 | ≤150 | 1000 |
| NYB-15 | 15 | 300 | 3-5 | 0.1-0.4 | ≤150 | 1300 |
| NYB-20 | 20 | 400 | 4-6 | 0.1-0.4 | ≤150 | 1680 |
| NYB-25 | 25 | 500 | 5-7 | 0.1-0.4 | ≤150 | 1900 |
| NYB-30 | 30 | 600 | 6-8 | 0.1-0.4 | ≤150 | 2300 |
| NYB-36 | 36 | 720 | 7-9 | 0.1-0.4 | ≤150 | 2650 |
| NYB-40 | 40 | 800 | 8-11 | 0.1-0.4 | ≤150 | 2900 |
| NYB-45 | 45 | 900 | 9-13 | 0.1-0.4 | ≤150 | 3200 |
| NYB-52 | 52 | 1040 | 10-15 | 0.1-0.4 | ≤150 | 3800 |
| NYB-60 | 60 | 1200 | 11-17 | 0.1-0.4 | ≤150 | 4500 |
| NYB-70 | 70 | 1400 | 12-19 | 0.1-0.4 | ≤150 | 5800 |
| NYB-80 | 80 | 1600 | 13-21 | 0.1-0.4 | ≤150 | 7200 |
Main Features
- No cloth or filter paper required, significantly reducing filtration costs
- Fully closed operation is environmentally friendly with no material loss
- Vibration residue falling reduces labor intensity and enables continuous operation
- Residue discharging through pneumatic valve minimizes worker labor intensity
- Can completely replace plate and frame filters with activated carbon or bleaching filtering capability

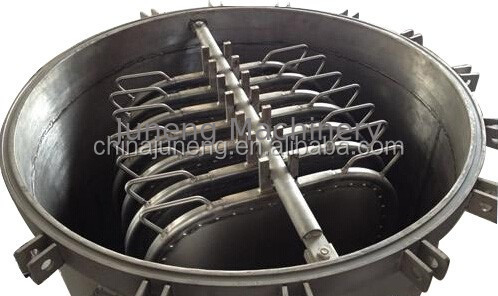

Filter Leaf Specifications (Example: NYB-12)
- 11 filter leaves provide 12 sqm filtration area
- Leaves surrounded by heavy box channel 1.8 mm material 316L
- Topside of leaf with reinforcement and one vibrator fork per leaf (SS 316 material)
- Leaf bottom with outlet nozzle featuring "O"ring seal (SS 316 nozzle with Viton rubber "O"ring)

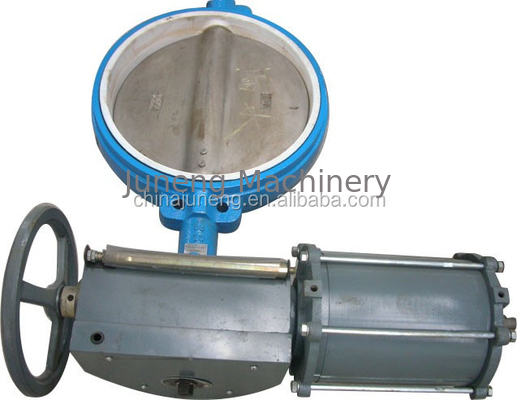

Butterfly Valve Specifications (Example: NYB-12)
- DN 400 butterfly valve WAFER TYPE for dry cake discharge at filter bottom
- 1st quality butterfly valve with NH-S seat material (up to 150°C high temp)
- Includes pneumatic actuator (double acting type) with 5.5 Bar air supply
Related Products
Vertical Filter Whole System
SZL Paper Filter
SYB Rotary Drum Filter
Certifications
Our Service
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory viewing available
After-Sales Service
- Installation and operation training
- Overseas engineer service available
- Professional after-sales service team
We provide free equipment installation guidance and operator training until mastery is achieved (domestic China). For any issues, we respond within 2 hours and dispatch engineers until resolution (domestic China). Overseas service costs are customer responsibility.
Packing & Delivery
| Packaging Detail | Specification |
|---|---|
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
| Packaging Details | Standard wooden box packaging. European exports include fumigated wooden boxes. Tight container shipments use PE film or custom packaging per customer request. |
Exhibitions
We regularly participate in major industry exhibitions including Canton Fair.
Our Company: Juneng Group
Juneng Machinery (China)Co., Ltd., established in 2006, is a professional manufacturer of filters, separators, decanter centrifuges and pumps with four factories in Nanjing and Yixing City.
We maintain strict quality control and customer service standards, with CE, ASME U and ISO 9001 certifications. Our products sell throughout China and export to USA, Germany, Korea, Japan, and other countries.
We welcome OEM and ODM orders, with engineering support available for custom applications.
Jiangsu Juneng Machinery North Branch
Located in Zhoutie Town, Yixing City, our north branch specializes in various filters including vertical/horizontal pressure leaf filters, self-cleaning filters, and bag filters.
Quality Assurance
- Factory audit available prior to purchase
- Material inspection during manufacturing and before shipment
- Strict compliance with technical requirements
Development Philosophy
- Continuous innovation and self-improvement
- 5% of sales revenue allocated to research
- 8% of workforce dedicated to development
- Multiple patents and high-quality new products
