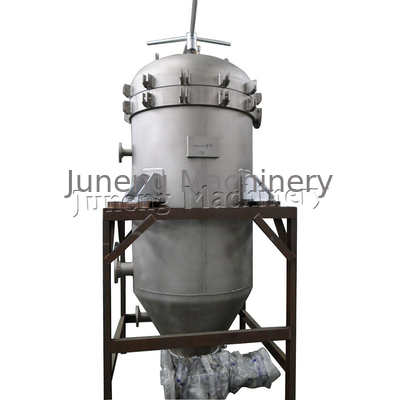

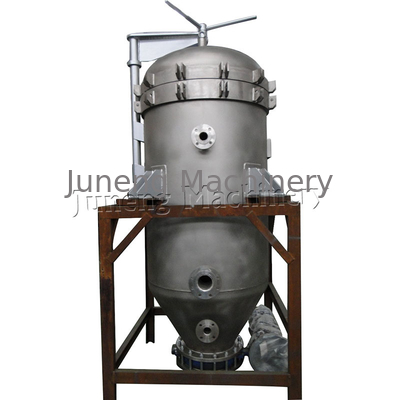

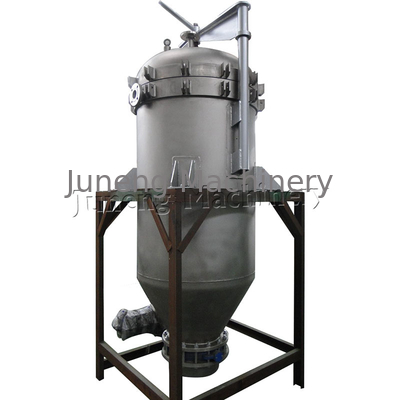

Stainless Steel 304 Vertical Pressure Leaf Filter 20m2 Filtration Area
| محل منبع | جیانگسو ، چین |
|---|---|
| نام تجاری | Juneng |
| مقدار حداقل تعداد سفارش | 1 ست |
| قیمت | $11,940-21,343 / set |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| ساختار | فیلتر برگ عمودی | مادی | فولاد ضد زنگ 304 |
|---|---|---|---|
| ظرفیت | 4-6t/h برای روغن | منطقه تصفیه | 20 متر مربع |
| دمای طراحی | 100-150 | فشار طراحی | 0.6 مگاپیکال |
| حجم کیک فیلتر | 400L | فشار | 0.1-0.4MPa |
| دمای کار | ≤150 | حجم دستگاه | 1680 لیتر |
| ماده برگ | 316L | ضخامت برگ | 1.8 میلی متر |
| نوع دریچه | دریچه پروانه DN 400 | جنس صندلی سوپاپ | NH-S |
| فشار محرک پنوماتیک | 5.5 بار | ||
| برجسته کردن | Stainless Steel 304 vertical pressure leaf filter,20m2 filtration area pressure leaf filter,Vertical pressure leaf filter with warranty,20m2 filtration area pressure leaf filter,Vertical pressure leaf filter with warranty |
||
توضیحات محصول
NYB High Efficiency Plate Type Pressure Leaf Filter with Insulate Jacket
Product Specifications
| Attribute | Value |
|---|---|
| Warranty | 1 Year |
| After-sales Service | Field maintenance and repair service |
| Name | Pressure leaf filter |
| Structure | Vertical leaf Filter |
| Material | Stainless Steel 304 |
| Capacity | 4-6T/H for oil |
| Filtration area | 20m² |
| Color | Green or blue |
| Design Temperature | 100-150 ℃ |
| Design Pressure | 0.6Mpa |
Product Overview
The NYB high efficiency plate hermetic filter is a high-performance, energy-saving filtration system designed for fully enclosed operation. This advanced equipment finds applications across multiple industries including chemical processing, petroleum refining, paint production, food processing, and pharmaceutical manufacturing.
Technical Specifications
| Model | Filtration area (㎡) | Filter cake volume (L) | Treatment Capacity | Work Pressure (Mpa) | Work temperature (℃) | Machine volume (L) |
|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 0.1-0.4 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 0.1-0.4 | ≤150 | 250 |
| NYB-7 | 7 | 105 | 1-1.8 | 0.1-0.4 | ≤150 | 420 |
| NYB-10 | 10 | 150 | 1.6-3 | 0.1-0.4 | ≤150 | 800 |
| NYB-12 | 12 | 240 | 2-4 | 0.1-0.4 | ≤150 | 1000 |
| NYB-15 | 15 | 300 | 3-5 | 0.1-0.4 | ≤150 | 1300 |
| NYB-20 | 20 | 400 | 4-6 | 0.1-0.4 | ≤150 | 1680 |
Key Features
- Eliminates need for filter cloth and paper, significantly reducing operational costs
- Fully enclosed system prevents material loss and ensures environmental compliance
- Vibration-assisted residue removal reduces labor requirements and enables continuous operation
- Pneumatic valve discharge system minimizes worker fatigue
- Capable of activated carbon or bleaching filtration, serving as a complete replacement for traditional plate and frame filters

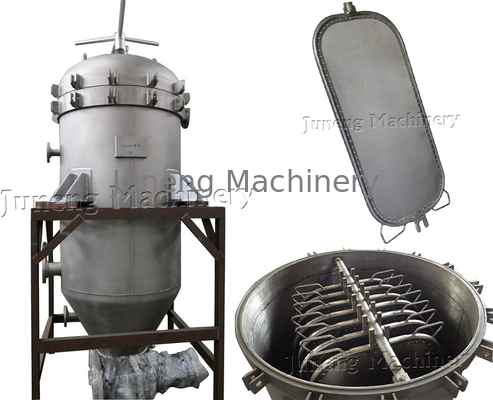

Filter Leaf Specifications (Example: NYB-12)
Configuration: 11 filter leaves provide 12 sqm filtration area
Construction: Heavy box channel (1.8mm) made from 316L stainless steel
Features: Topside reinforcement with vibrator fork (SS 316), bottom outlet nozzle with Viton rubber O-ring seal
Butterfly Valve Specifications (Example: NYB-12)
Type: DN 400 wafer type butterfly valve for dry cake discharge
Materials: NH-S seat material (rated to 150°C)
Actuation: Pneumatic double-acting actuator with 5.5 Bar air supply
Certifications
Service & Support
Pre-Sales Service
- Comprehensive inquiry and consulting support
- Sample testing services available
- Factory visit opportunities
After-Sales Service
- Installation and operation training
- Overseas engineer support available
- Prompt response within 2 hours for domestic service requests
- On-site problem resolution until customer satisfaction
About Juneng Group
Established in 2006, Juneng Machinery (China) Co., Ltd. specializes in the research, development, production, and distribution of filtration and separation equipment. With four strategically located factories in Nanjing and Yixing City, we maintain rigorous quality control and exceptional customer service standards.
Our product portfolio includes advanced filtration systems, separators, decanter centrifuges, and pumps, all certified to CE, ASME U, and ISO 9001 standards. Our solutions serve domestic markets across China and export to numerous countries including the USA, Germany, Japan, and Southeast Asian nations.
Quality Assurance
- Factory audit available prior to purchase
- Material inspection during manufacturing process
- Strict compliance with technical requirements
