پمپ های گریز از مرکز انتقال
Created with Pixso. پمپ گریز از مرکز گرید مواد غذایی ، پمپ گریز از مرکز بهداشتی آب

پمپ گریز از مرکز گرید مواد غذایی ، پمپ گریز از مرکز بهداشتی آب

Brand Name: Juneng Machinery
Model Number: GXG 800
MOQ: قابل توافق
قیمت: قابل مذاکره
Delivery Time: 60 روز
Detail Information
Place of Origin:
China(Yixing, Jiangsu)
گواهی:
CE、ISO9001
Name:
Food Grade Centrifugal Pump
تایپ کنید:
الکتریکی
سوخت:
الکتریکی
Pressure:
High Pressure
Standard or nonstandard:
Standard
Usage:
Sanitary
Packaging Details:
Standard Wooden Case
Supply Ability:
40 set / months
برجسته کردن:

پمپ گریز از مرکز

,

پمپ فشار بالا

Product Description

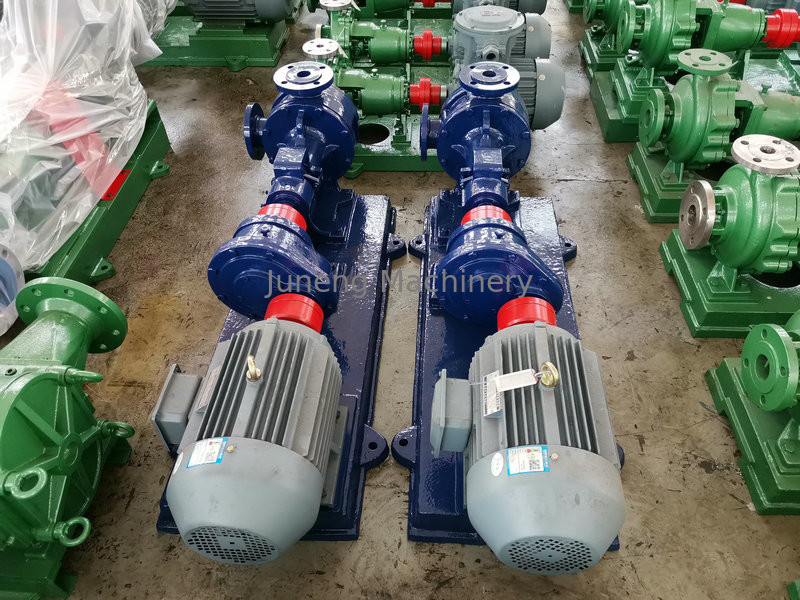

Electric Food Grade Centrifugal Pump , Water Sanitary Centrifugal Pump​



Food Grade Centrifugal Pump Performance and features:


1. Reasonable design, cost performance, cost-effective.
2. Impeller are mostly adopt closed structure type according to the performance parameters. Few small flow pump is a semi-open impeller with high efficiency and not easy to be clogged.
3. The mechanical seal we use is high-quality.
4. Able to be preservative.
5. The structure of whole pump is simple and compact, so it's light weight and small size which are easily be stalled and maintance.
6. Horizontal type pump will be stable when opearting. The lifespan would be longer than normal pump.



Food Grade Centrifugal Pump Application:



Food Grade Centrifugal Pump is mainly for mixing oil with alkaline, oil with phosphoric acid, and oil with water in the continuous refining process for vegetable oil, and will send the oil to next operation in certain pressure. And it can also be used for mixing two liquids in other industries. This pump can mix fully, run steadily, has very low noise, is indispensable for continuous refining process of vegetable oil.



Food Grade Centrifugal Pump advantage:



LHB180 centrifugal mixing pump mainly consists of drum, centripetal pump, inlet/outlet unit and motor.

Two (or more) liquids mixed quantitatively are fed to the inlet and enter into the drum, they are mixed fully due to centrifugal force and 6 cavities in the drum, the centripetal pump at the outlet converts the dynamic pressure head of the liquid rotating at high speed into static pressure head (0.10~0.2MPa) and sends it to the next operation.

Food Grade Centrifugal Pump Specifications:



Model

Treatment Capacity (T/D)

Motor Power ( Kw)

LHB150

30~150

3

LHB160

80~180

3

LHB180

100~200

5.5

LHB180A

200~400

7.5

LHB180B

400~600

11
